Durable Moluded panel frame will stand up to UV and salt air. Low profile makes it easy to install in tight spaces. Fast-on circuit breaker connectors make it quick to wire. Red "ON” indicating LEDs for safe operation in low light conditions. Carling Technologies™ 15A circuit breakers. Illuminated ON indication. Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode. Quick connect BUS eliminates wire harness and clutter contributing to a low profile panel.
Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems
Stainless steel 6 X 5/8'' mounting screws included
Key Features
- Positions : 4 or 6
- Nominal Voltage : 12V DC
- Maximum Amperage : 45A
- Terminmal Type : 1/4" (6mm)
- Hardware : Stainless Steel No 6 x 5/8" mounting screws
- Ring Terminal Size : M5 (No 10)
- Height : 6 Position 6.5in (165.1mm), 4 position 5.7in (145mm)
- Width : 4.5in (114.3mm)
- Depth : 1.75in
Models

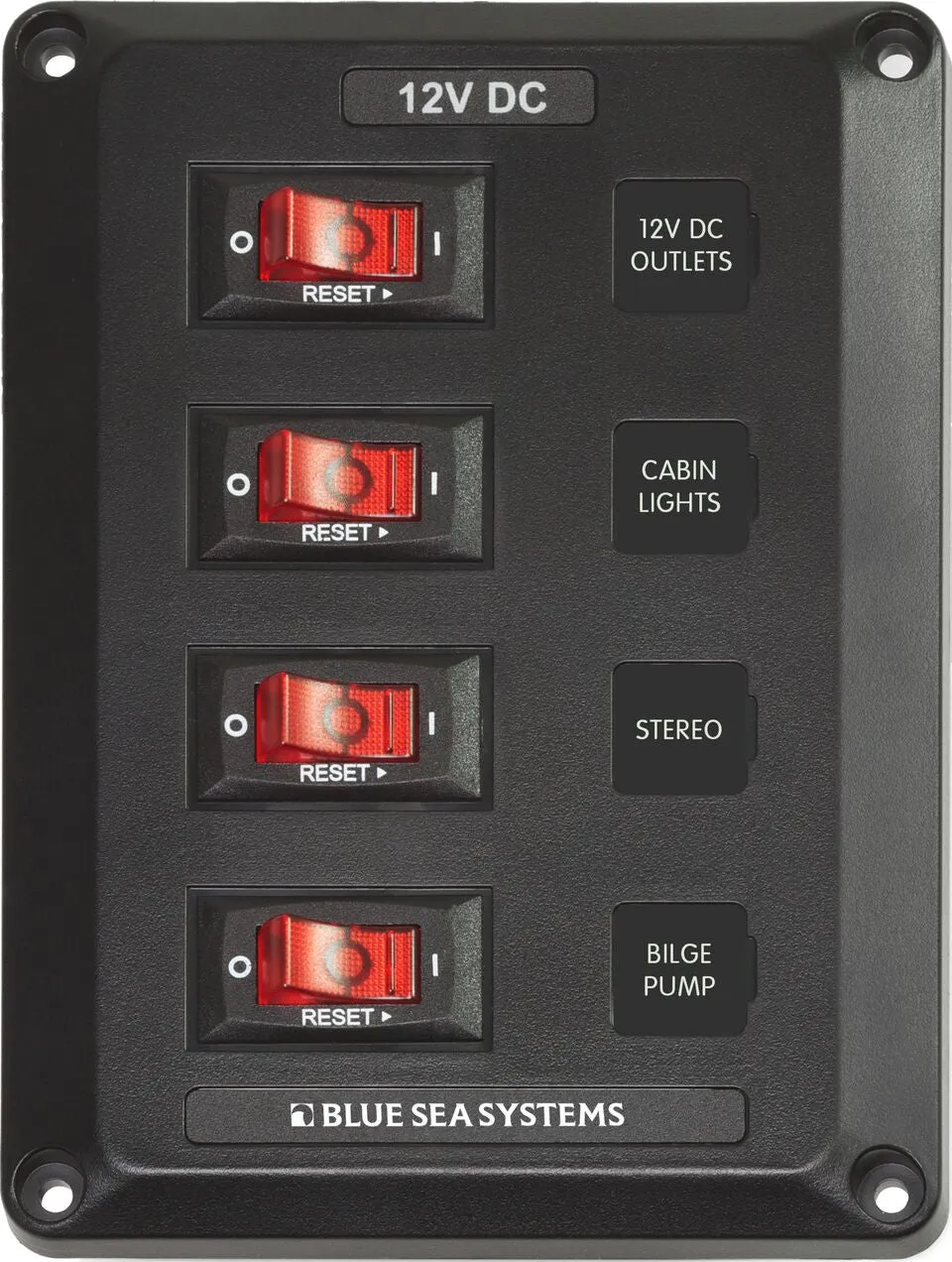

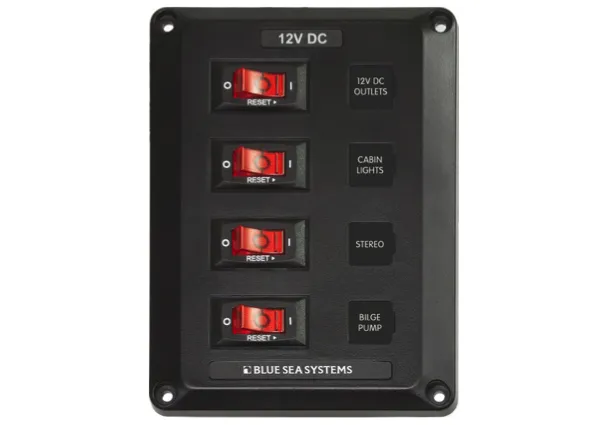

- 4 Position Circuit Breaker Panel

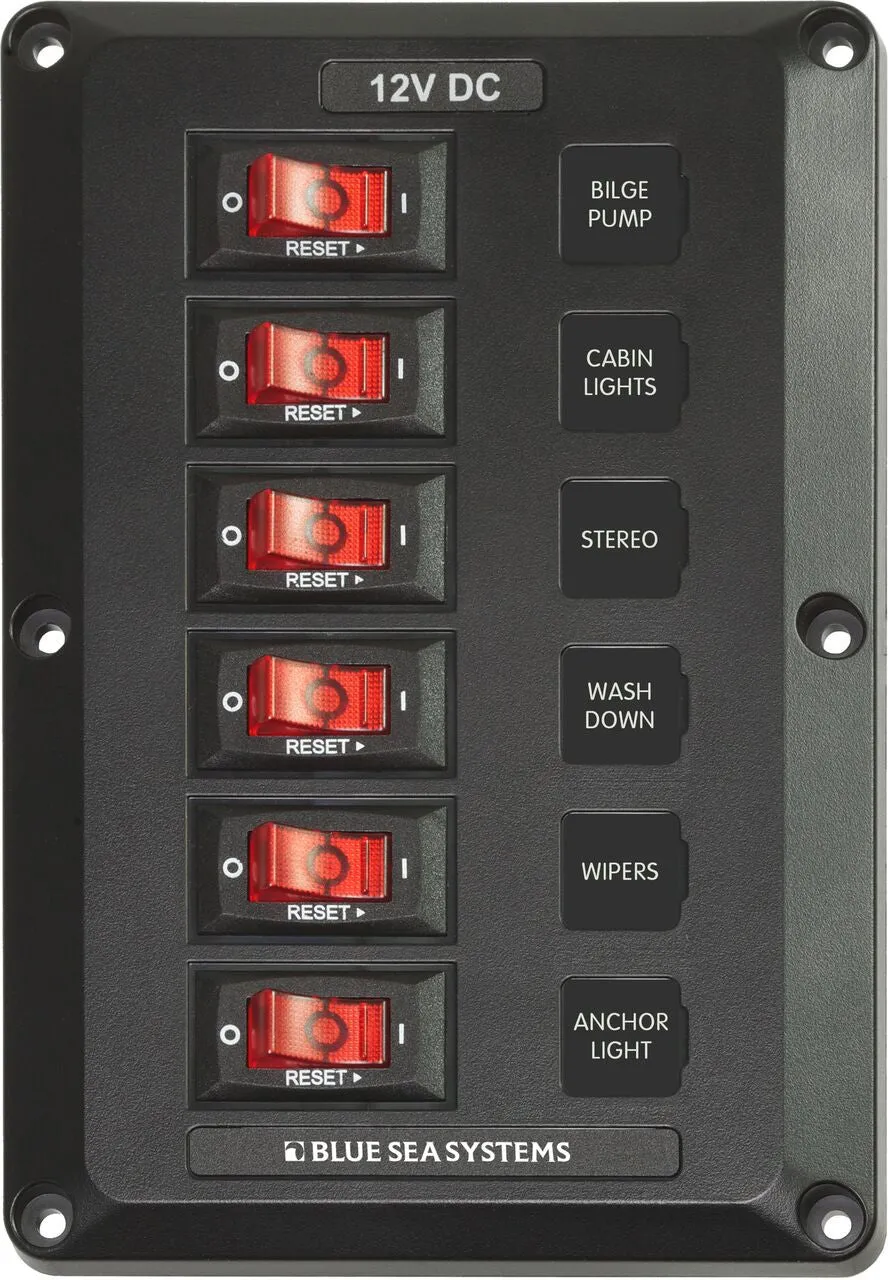

- 6 Position Circuit Breaker Panel
